Energy Efficiency and Environmental Benefits of Waste Heat Recovery Technologies

Energy Efficiency and Environmental Benefits of Waste Heat Recovery Technologies in Fishmeal Production Plants: A Case Study in Vietnam

Abstract

The fishmeal production industry is essential for providing protein for animal feed in the aquaculture sector. However, the industry faces challenges related to energy consumption and environmental sustainability. This study evaluates the energy efficiency and environmental benefits of waste heat recovery (WHR) technologies in a fishmeal production plant in Vietnam. Data were collected from the plant between 2016 and 2022, and a specific energy consumption (SEC) indicator and a comprehensive methodology were utilized. Implementing an economizer as a WHR technology resulted in a 55.5% decrease in SEC compared to the state before installation. The enhanced energy efficiency also translated to reduced energy consumption per output unit. Moreover, the economizer contributed to annual energy savings of 4537.57 GJ/year and cost savings of USD 26,474.49. Additionally, carbon dioxide (CO₂) emissions associated with producing one ton of fishmeal decreased by 58.37%. These findings highlight the potential for WHR technologies to improve energy efficiency and reduce the environmental footprint of fishmeal production. The study’s results provide valuable insights for practitioners and policymakers in promoting energy efficiency practices and reducing environmental impact in this and similar industries.

1. Introduction

The fishmeal production (FMP) industry is critical in providing a valuable protein source for animal feed in the global aquaculture sector [1]. However, this industry faces significant challenges related to energy consumption, air pollution, and environmental sustainability [2]. The production process relies heavily on boilers, which consume substantial energy and release waste heat into the environment [3,4,5,6], contributing to greenhouse gas emissions and economic losses. To achieve sustainable development, fishmeal factories must explore solutions that enhance energy efficiency, recover waste heat, and minimize flue gas emissions.

Waste heat recovery (WHR) technologies have gained attention in various industrial sectors to improve energy efficiency and minimize environmental impacts [7,8]. By capturing and utilizing waste heat generated by industrial processes, WHR technologies offer benefits such as reducing energy consumption and addressing concerns related to greenhouse gas emissions. Implementing WHR technologies enables industries to improve operational sustainability while minimizing environmental footprint [7].

Several studies have demonstrated the benefits of WHR technologies in improving energy efficiency and reducing environmental impacts in different industries. For example, a study by Singh and Dasgupta [9] investigated waste heat utilization in a milk refrigeration plant, significantly reducing carbon dioxide (CO₂) emissions and total energy costs. Douvartzides and Karmalis [10] applied an organic Rankine cycle to recover heat from exhaust gases, enhancing overall plant efficiency and reducing fuel consumption. Ganapathy [6] highlighted the advantages of using economizers for heat recovery boilers, such as energy savings and reductions in greenhouse gas emissions.

In the FMP industry, WHR technologies can improve energy efficiency and reduce the environmental footprint of these facilities. However, more scientific studies need to analyze the energy use efficiency and environmental benefits of implementing WHR technologies in FMP plants, particularly in developing countries.

The specific energy consumption (SEC) indicator has emerged as a valuable tool for assessing and improving energy efficiency in various industries [11,12]. SEC quantifies the amount of energy consumed per output unit, providing insights into the energy intensity of production processes [11]. It has been widely used to evaluate and enhance energy efficiency in different sectors [12,13]. However, its application in the FMP industry and its effectiveness in improving energy efficiency and sustainability require further research.

Given the limited research on the application and effectiveness of WHR technologies and the SEC indicator in the FMP industry, especially in developing countries such as Vietnam, this study aims to fill this research gap. The study will conduct a comprehensive case study in Vietnam to evaluate the implementation of WHR technologies and the SEC indicator in a fish meal production plant. The objective is to assess the potential for improving energy efficiency through WHR technologies in the FMP process and quantify the energy savings and reductions in greenhouse gas emissions achieved by implementing WHR technologies.

The findings of this study will contribute valuable insights to the scientific community, providing evidence on the effectiveness of WHR technologies and the SEC indicator in enhancing sustainability in the FMP industry. The results and recommendations derived from this study can guide practitioners and policymakers in the fish meal production industry toward implementing energy-efficient practices and reducing environmental impact. Moreover, focusing on a developing country context adds to the existing body of knowledge, predominantly based on studies conducted in developed countries.

2. Materials and Methods

2.1. Case Study Selection in Vietnam

This study focuses on the Khanh Hoang Seaprexco Ltd. (KHS) (Sóc Trăng, Vietnam) factory, one of Vietnam’s largest fishmeal factories. The factory is located in Tran De town, Soc Trang province, within the Mekong Delta region of Vietnam. The KHS factory specializes in FMP and has an annual capacity of 12,500 tons [14]. It utilizes pangasius byproducts to produce fishmeals and operates various energy-consuming equipment, including a water pump, a grinder, a fan, and a boiler. Among these, the boiler is the most energy-intensive equipment and uses biomass, such as rice husk pellets, as its fuel source. In late 2017, an economizer, a waste-heat recovery (WHR) technology, was installed on the boiler flue-gas system to enhance energy efficiency.

2.2. Description of the FMP Process

The FMP process at the KHS factory involves four main steps, as illustrated in Figure 1. Initially, the fish processing byproducts are indirectly heated by steam from the dryer’s boiler (step 1). The byproducts are then classified by a screening machine (step 2). In the third step, the screened products are crushed into pellets (step 3). Finally, the pellets undergo a cooling process in the fourth stage (step 4).

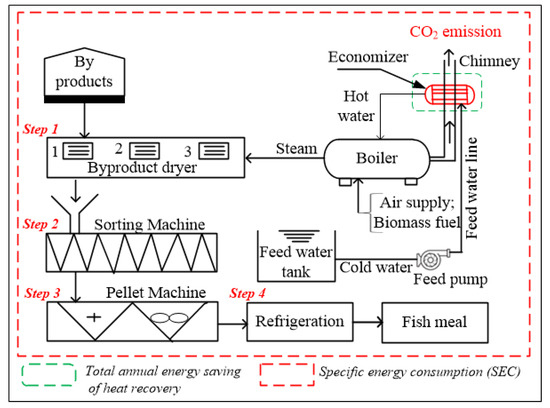

Figure 1. The scheme of the FMP process using fish byproducts at the KHS factory (shows the economizer installation in the upper right corner).

2.3. Implementation of Boiler and Waste Heat Recovery Technologies

2.3.1. Boiler Technology

The boiler is a critical component in the FMP process at the KHS factory and consists of two essential parts: the combustor and the heat exchanger (Figure 2). The combustor facilitates controlled biomass fuel combustion, such as rice husk pellet (RHP). Burners introduce RHP into the combustion chamber and mix them with the appropriate airflow for combustion. The combustion process generates significant heat transferred to the surrounding water.

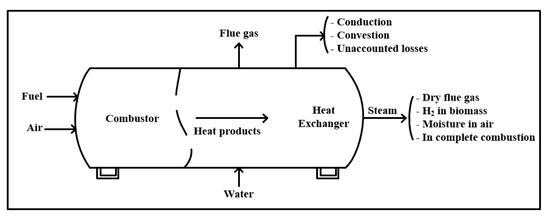

Figure 2. Diagram depicting the configuration of the combustion chamber and heat exchanger within a boiler.

The heat exchanger enhances heat transfer from flue gasses and the combustion chamber to the water, facilitating efficient steam production. It typically consists of a long coiled or arranged serpentine-like pipe to increase the surface area and optimize heat transfer. The heated water from the heating system circulates through the heat exchanger, gradually absorbing the heat from the combustion process and increasing in temperature.

Integrating the combustion chamber and heat exchanger optimizes the boiler system’s conversion of fuel-derived energy into heat energy, leading to steam generation. This heat energy is transferred to the water, resulting in steam production. The resulting steam indirectly heats the fish processing byproducts (step 1).

2.3.2. Waste Heat Recovery Technologies

To further enhance the energy efficiency of the FMP process at the KHS plant, an economizer, as a waste heat recovery (WHR) technology, was installed in the boiler system at the end of 2017 (Figure 3). The economizer is a heat exchanger device that recovers waste heat from the flue gases generated during the combustion process in the boiler. This recovered heat is then used to preheat the feed water, an essential step in the boiler operation.

Figure 3. Structure of the economizer.

The key characteristics and functions of the economizer are as follows:

Heat recovery: The economizer is designed to recover waste heat from the hot flue gases, which would otherwise be released into the atmosphere. By capturing this waste heat, the economizer effectively utilizes it for a helpful purpose, specifically for preheating the feed water.

Improved energy efficiency: By preheating the feed water, the economizer reduces the energy required to bring the water to the desired temperature for steam production. This leads to improved energy efficiency in the FMP process [12]. As a result, the specific energy consumption (SEC) is reduced, and the production plant becomes more energy-efficient.

Reduction in CO₂ emissions: As a direct consequence of reduced energy consumption, installing the economizer substantially decreases CO₂ emissions. Burning rice husk pellets for steam generation is a significant source of CO₂ emissions in fish meal production [15]. By optimizing energy use and reducing the consumption of rice husk pellets, the economizer helps to mitigate the release of CO₂ into the atmosphere, making the production process more environmentally friendly.

Process integration: The economizer is integrated into the boiler system as a heat transfer component. It allows the hot flue gases to pass through its coils while the feed water flows through the interior of these coils. This arrangement facilitates efficient heat exchange between the two streams, maximizing waste heat recovery and minimizing heat losses.

Cost savings: Apart from its environmental benefits, the economizer contributes to cost savings for the fish meal production plant. By reducing energy consumption and optimizing the use of rice husk pellets, the plant’s energy costs are minimized, leading to economic benefits and enhancing the overall sustainability of the operation.

2.4. Data Collection and Analysis

2.4.1. Data Collection

Data collection for this study involved two primary methods: direct data collection from the KHS factory and secondary data collection from published studies.

Direct data collection from the KHS factory consisted of three field surveys conducted by the research team in December 2017, December 2018, and June 2023. These surveys involved observing the factory’s operations and gathering information on the boiler’s and energy saver’s structure and function. Figure 1, Figure 2 and Figure 3 were created based on these observations. Moreover, we collected monthly data on fishmeal output (FMO), electricity consumption (EC), and rice husk pellets consumption (RHPC) for seven years, divided into two phases: before the installation of the economizer (2016–2017) and after the installation of the economizer (2018–2022), from factory reports. Detailed data collected from the field can be found in Supplementary S1 of the Supporting Information.

Secondary data collection involved reviewing published documents to obtain the necessary data for calculating total annual energy savings (TAES) from heat recovery, CO₂ emissions to the environment, annual energy savings (AES), and annual energy cost savings (AECS) resulting from the economizer system installation at the KHS factory. The secondary data involved using default emission factors (EF) of CO₂ based on fuel type, the percentage of heat lost through the flue-gas system (%f), the efficiency of the heat recovery system (%HR), and the price of electricity/RHP in Vietnam. The specific details of the secondary data are presented in Supplementary S2 of the Supporting Information.

2.4.2. Data Analysis

The data-analysis process in this study involves several steps, including data visualization and examination, calculation of total energy consumption (TEC), determination of the specific energy consumption (SEC), analysis of the difference in the SEC index, calculation of AES, estimation of AECS, and calculation of CO₂ emissions. Each step is described sequentially.

Visualizing and Analyzing the Collected Data

The collected data from the field (FMO, EC, and RHPC) were visualized using the Textable function in the Tableau Public platform. This approach represented the data as rectangular shapes, with the color of each rectangle reflecting its corresponding values.

This study employed the qqnorm function in R to generate and analyze QQ plots, aiming to evaluate the conformity of the collected data from the KHS factory (FMO, EC, and RHPC) to a normal distribution or its approximation. The procedure for utilizing the qqnorm function is detailed in Supplementary S4.1 of the Supporting Information.

Calculation of Total Energy Consumption

Total energy consumption (TEC) in this study refers to the overall energy consumed during the operation of the KHS factory, including electricity and rice husk pellets. TEC is calculated as the sum of EC and RHPC using Equation (1).

𝑇𝐸𝐶=𝐸𝐶+𝑅𝐻𝑃𝐶

(1)

where: TEC represents the total energy consumption measured in gigajoules (GJ). EC denotes the electricity consumption by the KHS factory measured in gigajoules (GJ). RHPC signifies the amount of RHP consumed by the factory measured in gigajoules (GJ).

Calculation of Specific Energy Consumption

Specific energy consumption (SEC) in this study refers to the energy required to produce one ton of fishmeal at the KHS factory. The SEC index at the KHS factory is calculated monthly and averaged yearly for seven years (2016–2022). It is determined by dividing the total energy consumed (TEC) by the fishmeal output (FMO) according to Equation (2).

𝑆𝐸𝐶=𝑇𝐸𝐶𝐹𝑀𝑂

(2)

The unit used for SEC is GJ/ton, TEC is in GJ, and FMO is in tons.

Examination of the Difference in the SEC Index

An independent t-test was conducted using the R software (version 4.3.1) to compare the average SEC index before (2016, 2017) and after (2018, 2019, 2020, 2021, and 2022) the economizer installation at the KHS factory.

Waste heat recovery boiler

Analyzing the Linear Correlation among Indices

The Pearson correlation coefficient was used to analyze the linear correlation among five indices (FMO, EC, RHPC, TEC, and SEC). The Pearson correlation coefficient measures the degree of linear correlation between two variables, ranging from −1 to +1. A coefficient close to −1 or +1 indicates a strong correlation, while a coefficient near 0 suggests a lack of significant linear correlation. The Pearson correlation analysis is conducted using the R software. The specific command structure is presented in Supplementary S4.3 of the Supporting Information.

Calculation of Annual Energy Savings

The annual energy savings (AES) refer to the amount of energy that the KHS factory has saved through the installation of the economizer. This study aims to calculate the AES achieved by the KHS factory from 2018 to 2022, separately for each specific energy source (EC and RHPC) and for the overall energy savings. The AES is calculated using Equations (3)–(5), and a detailed breakdown of the calculation process can be found in Table S3.3, Supplementary S3, which is provided as Supplementary Information.

𝐴𝐸𝑆𝐸𝐶=𝐴𝐸𝐶 ⋅%𝑓𝑔 ⋅ %𝐻𝑅

(3)

𝐴𝐸𝑆𝑅𝐻𝑃𝐶=𝐴𝑅𝐻𝑃𝐶⋅%𝑓𝑔 ⋅ %𝐻𝑅

(4)

𝑇𝐴𝐸𝑆𝐻𝑅=𝐴𝐸𝑆𝐸𝐶+𝐴𝐸𝑆𝑅𝐻𝑃𝐶

(5)

where: AES_EC is the annual energy savings from electricity consumption (GJ/year), AEC is the annual electricity consumption at the KHS factory (unit: GJ), %fg is the percentage of heat loss through flue gas (unit: %), %HR is the efficiency of the heat recovery system (unit: %); AES_RHPC is the annual energy savings from rice husk pellet consumption (GJ/year), ARHPC is the annual rice husk pellet consumption at KHS factory (unit: ton); TAES_HR is the total annual energy savings from heat recovery (GJ/year).

In this study, the measurement or estimation of two parameters, namely the heat loss through the flue gas (%fg) system and the efficiency of the heat recovery system (%HR), was not conducted due to practical constraints and limitations within the scope of the research. Direct measurements or estimations of these parameters would have required substantial resources, including time and specialized equipment, which were unavailable for this study. Consequently, credible literature sources were consulted to overcome these limitations and obtain values for %fg and %HR.

One relevant study conducted by Willems [16] focused on advanced system controls and energy savings for industrial boilers. This research provided an overview of boiler systems, including their components and typical heat losses. The efficiency of a boiler was assessed through input/output calculations, considering factors such as fuel input, steam output, and heat losses. The study also discussed advanced developments in boiler technology, such as using extended heat transfer surfaces, energy savings from heat recovery, and computational fluid dynamics. Within this study, the researchers reported that 18% of the heat is lost through the exhaust gas system (%fg = 18), while the heat-recovery system achieved an efficiency (saving) of 30% (%HR = 30). These values contributed to understanding energy savings obtained through advanced system controls and heat recovery systems.

Although the use of cited values introduces a certain level of uncertainty, it allowed this study to make preliminary assessments and gain valuable insights into the potential energy savings achievable through heat-recovery systems in the specific context of the KHS factory system. Future research endeavors can aim to investigate these parameters through onsite measurements or numerical estimations to enhance the precision and reliability of the analysis.

Calculation of Annual Energy Cost-Savings (AECS)

The annual energy cost-savings (AECS) refers to the monetary value the KHS factory saves annually from reducing energy consumption, specifically EC and RHPC, by implementing an economizer. This research aims to calculate three indices about the energy cost savings at the KHS factory between 2018 and 2022. These indices encompass the AECS derived from electricity consumption (AECS_EC), the AECS from rice husk pellet consumption (AECS_RHPC), and the total AECS encompassing all forms of energy consumption (TAECS). The calculation of the annual cost savings utilizes the AES data mentioned in Section Calculation of Annual Energy Savings in conjunction with the prevailing electricity and rice husk pellet prices in Vietnam. To determine the AECS, Equations (6)–(8) are applied. The detailed calculation process is provided in Table S3.4 in the Supplementary Information.

𝐴𝐸𝐶𝑆𝐸𝐶=𝐴𝐸𝑆𝐸𝐶⋅ 𝑃𝐸𝐶

(6)

𝐴𝐸𝐶𝑆𝑅𝐻𝑃𝐶=𝐴𝐸𝑆𝑅𝐻𝑃𝐶⋅ 𝑃𝑅𝐻𝑃𝐶

(7)

𝑇𝐴𝐸𝐶𝑆=𝐴𝐸𝐶𝑆𝐸𝐶+𝐴𝐸𝐶𝑆𝑅𝐻𝑃𝐶

(8)

where, AECS_EC is calculated in USD, AES_EC is calculated in GJ, P_EC is the price of electricity consumption in USD per gigajoule-hour (unit: USD/GJ); AECS_RHPC is calculated in USD, P_RHPC is the price of one kg of rice husk pellet consumption (unit: USD/kg_RHPC). TAECS is calculated in USD.

Calculation of CO₂ Emissions

CO₂ emissions are calculated using the Intergovernmental Panel on Climate Change (IPCC) guidelines [6], considering emission factors specific to the fuel types and the national grid emission factor for electricity consumption in Vietnam in 2018 [7]. The calculation of CO₂ emissions from biomass utilization and electricity consumption are outlined in Equation (9), and a comprehensive breakdown of the calculation process can be found in Table S3.5 in the Supplementary Information.

CO2(𝑒𝑚𝑖𝑠𝑠𝑖𝑜𝑛)= N𝑓𝑢𝑒𝑙⋅EF𝑓𝑢𝑒𝑙

(9)

where, CO₂_(emission) is emission of CO₂ by type of fuel (kgCO₂). N_fuel is the amount of fuel combusted (TJ), and EF_fuel is the default emission factor of CO₂ by type of fuel (kgCO₂/TJ).

3. Results

3.1. Overview of Fishmeal Output and Energy Consumption from 2016 to 2022

Figure 4 presents data on fishmeal output (FMO) and energy consumption (EC and RHPC) at the KHS factory from 2016 to 2022. Figure 4a focuses on monthly FMO production, showing that the minimum production was 149 tons in February 2016, while the maximum production reached 1476 tons in September 2019. FMO production decreased in February and March but consistently increased in August and September each year. The annual average FMO at the KHS factory increased from 387 tons in 2016 to 954 tons in 2022.

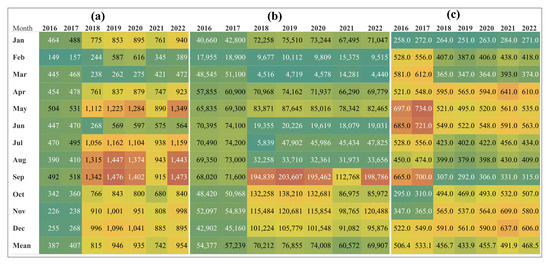

Figure 4. Monthly data on fishmeal output and energy consumption from 2016 to 2022 collected at the KHS factory: (a) Fishmeal output (FMO) (unit: tons), (b) electricity consumption (EC) (unit: kWh), (c) rice husk pellet consumption (RHPC) (unit: tons).

Figure 4b illustrates monthly electricity consumption (EC) at the KHS factory from 2016 to 2022. The lowest EC occurred in March 2022 (4440 kWh), while the highest was recorded in September 2019 (203,607 kWh). Similar to FMO production, low EC was observed in February and March, while high consumption was observed in September and October. The annual EC showed a gradual increase from 2016 to 2019, followed by a slight decrease in 2021 and a slight increase in 2022.

Figure 4c presents monthly rice husk pellet consumption (RHPC) data at the KHS factory from 2016 to 2022. The lowest RHPC was observed in January 2019 (251 tons), while the highest consumption occurred in May 2017 (734 tons). January consistently exhibited the lowest RHPC, while May and June generally showed the highest levels. The average monthly RHPC consumption ranged from 433.9 to 491.9 tons.

The QQ plot-analysis results in Figure 5 demonstrate that the data from the KHS factory, including FMO, EC, and RHPC, closely resemble a normal distribution, as the data points cluster around the standard reference line.

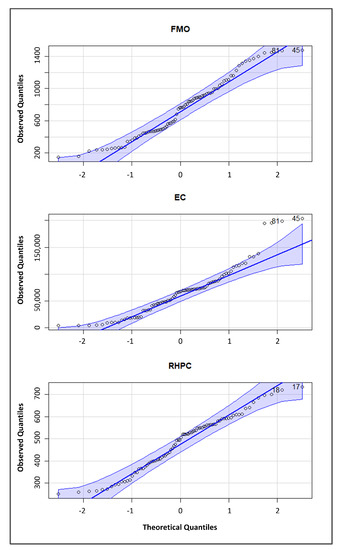

Figure 5. QQ plot-analysis results for data collected from 2016 to 2022 collected at the KHS factory (FMO, EC, and RHPC).

3.2. Total Energy Consumption and Specific Energy Consumption

Figure 6 shows the monthly total energy consumption (TEC) at the KHS factory from 2016 to 2022. The TEC varied significantly, ranging from 3927 to 10,988 GJ. The lowest TEC value was recorded in January 2016, while the highest was observed in May 2017. The TEC index followed a similar pattern to the RHPC and EC indices, with lower values during winter (mainly January) and higher values during summer (April to September). After installing the economizer, the annual TEC index decreased compared to the period before installation.

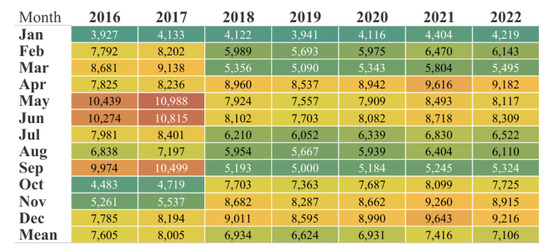

Figure 6. Monthly total energy consumption data for the KHS factory from 2016 to 2022 (unit: GJ).

Figure 7 displays the specific energy consumption (SEC) index for the KHS factory from 2016 to 2022. The SEC values ranged between 3.39 and 52.30 during this period. The lowest SEC value occurred in September 2019, while the highest was observed in February 2016. Overall, the SEC values showed a decreasing trend from 2016 to 2022 (except for 2021). The monthly average SEC was highest in 2016 and lowest in 2022. The average annual SEC index before installing the WHR technology (2016–2017) was 263 GJ/ton, while for the period after installation (2018–2022), it was 117, representing a 55.5% decrease.

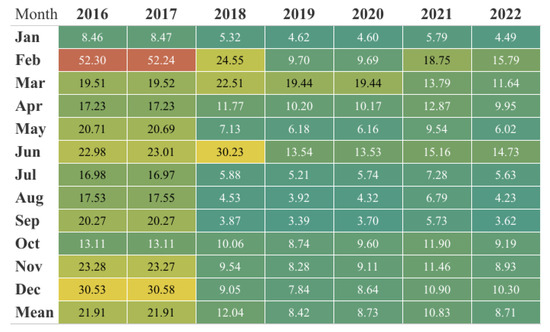

Figure 7. The monthly index of specific energy consumption for the KHS factory from 2016 to 2022 (unit: GJ/tons).

3.3. Correlations between Indicators and Difference in SEC before and after Economizer Installation

3.3.1. Analysis of the Correlation between Indicators

The correlation analysis examined the interrelationships among five indices: FMO, EC, RHPC, TEC, and SEC at the KHS factory from 2016 to 2022. The results in Figure 8 reveal a robust positive linear correlation between the TEC and RHPC indices, with a correlation coefficient of 1. On the other hand, a weak correlation was observed between the TEC and EC indices, with a correlation coefficient of 0.11. A strong negative correlation was also found between the SEC and FMO indices, with a correlation coefficient of −0.78. However, the TEC index did not exhibit any significant linear correlation. Furthermore, no meaningful correlations were observed among the remaining pairs of indices.

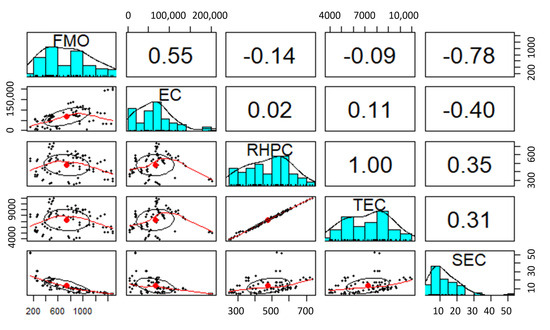

Figure 8. Correlations among FMO, EC, RHPC, TEC, and SEC index at the KHS factory during 2016–2022.

3.3.2. Analysis of the Difference in SEC before and after Economizer Installation

Table 1 presents the t-test results conducted to analyze the difference in the average SEC values at the KHS factory between the periods before (2016 and 2017) and after (2018, 2019, 2020, 2021, and 2022) the installation of the economizer. The findings indicate statistically significant differences in the SEC index between the two periods, with t-test values ranging from 2.43 to 3.92 and p-values less than 0.05. The SEC index before the economizer installation consistently exceeded the values observed after the installation, with mean differences ranging from 9.87 to 13.20 and a 95% confidence interval from 1.42 to 20.83.

3.4. Energy and Economic Savings through the Implementation of Waste Heat Recovery Technologies

3.4.1. Energy Savings

Figure 9 visually represents the annual energy savings (AES) achieved by implementing a WHR economizer at the KHS factory. The AES values were computed using the methodologies discussed in Section Calculation of Annual Energy Savings. The results indicate that, on average, the economizer contributed to energy savings of 4537.57 GJ/year. These savings fluctuated slightly, ranging from 4292.92 GJ/year in 2019 to 4804.79 GJ/year in 2021. Most of the achieved savings, ranging from 95.82% to 97.06%, were attributed to energy recovery from RHPC. Specifically, the AES resulting from the RHPC amounted to 4373.55 GJ/year, while the AES derived from EC accounted for 164.02 GJ/year.

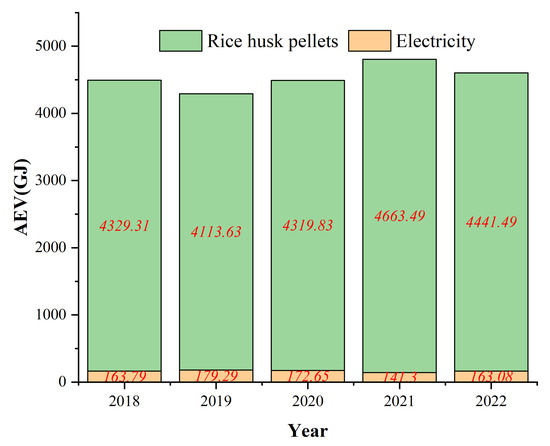

Figure 9. Annual energy savings (AEV) achieved by the KHS factory after the installation of the economizer (yellow represents energy savings from EC, green represents energy savings from RHPC).

3.4.2. Annual Energy Cost Savings

Table 2 illustrates the annual energy cost savings (AECS) achieved by the KHS factory after implementing the economizer. The AECS values were determined utilizing the methodologies expounded upon in Section Calculation of Annual Energy Cost-Savings (AECS). The outcomes, derived from the aggregate AES obtained through heat recovery and the prevailing prices of electricity and RHP each year, reveal that the KHS factory attains an average annual savings of USD 26,474.49. The lowest savings were recorded in 2019 at USD 25,804.84, while the highest was in 2021 at USD 27,194.49. A substantial majority of the savings, exceeding 95% of the total, were realized through reduced RHPC.

3.5. Reductions in CO₂ Emissions

The bar chart in Figure 10 depicts the yearly release of CO₂ emissions into the environment due to the consumption of electricity and RHP at the factory from 2016 to 2022. The calculation of annual CO₂ emissions was performed using the methodologies outlined in Section Calculation of CO₂ Emissions. The findings reveal that the recorded CO₂ emissions ranged between 8459.87 and 9985.92 tons/year, with the lowest emissions observed in 2019 and the highest in 2017. The consumption of RHP substantially contributed to most CO₂ emissions, accounting for approximately 90% to 93.7% during the specified years. Notably, there was no significant fluctuation in CO₂ emissions before and after the installation of the economizer, with emissions amounting to 9736.2 tons and 8869.5 tons/year, respectively, resulting in an 8.9% reduction.

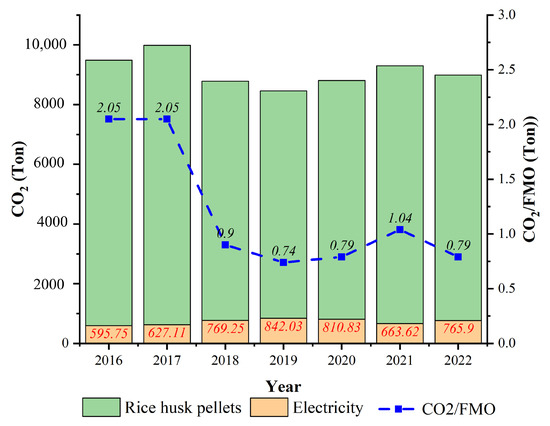

Figure 10. CO₂ emissions from electricity consumption and RHP consumption at KHS Factory from 2016 to 2022 (bar chart); and CO₂ emissions from the production of one ton of fishmeal during the same period (line chart).

The line chart in Figure 10 visually represents the temporal evolution in CO₂ emissions attributed to producing one ton of fishmeal throughout the study. Before the installation, the KHS factory emitted an average of 2.05 tons of CO₂ into the environment for every ton of fishmeal produced. This number is 58.37% higher than the emissions observed after the WHR installation, which amounted to 0.85 tons of CO₂ per ton of fishmeal.

4. Discussion

4.1. Interpretation of the Results

The results of this study provide valuable insights into the energy efficiency and environmental benefits of waste heat recovery (WHR) technologies in FMP plants. The analysis of fishmeal output (FMO), total energy consumption (TEC), and specific energy consumption (SEC) revealed essential trends that contribute to a deeper understanding of the potential for improving energy efficiency and reducing environmental impacts in the FMP industry.

The analysis of FMO data showed an increasing trend over the study period, indicating the growth of FMP at the KHS factory. This increasing trend aligns with the growing demand for fishmeal as a protein source in aquaculture [17]. The rising FMO highlights the importance of addressing energy efficiency and environmental sustainability in FMP to meet the increasing demand while minimizing resource consumption.

The analysis of TEC demonstrated significant variations throughout the study period, with the lowest values observed during winter and the highest values during summer. Weather conditions and variations in fish availability for processing most likely cause this seasonal fluctuation. The findings also showed significant variations in TEC throughout the study period, with lower energy consumption observed after the economizer installation. This finding suggests that implementing WHR technologies, such as the economizer, can save energy in FMP.

The SEC index, representing the energy required to produce one ton of fishmeal, decreased over the study period (a 55.5% decrease compared to SEC before installing the WHR), indicating an improvement in energy efficiency at the KHS factory. The implementation of WHR technologies, particularly the economizer, reduced SEC by preheating the feed water and utilizing waste heat from the flue gases.

The correlation analysis revealed a strong negative correlation between the SEC index and the FMO, indicating that as the FMO increases, the SEC per unit of output decreases. This finding suggests that increased production efficiency and scale economies in the fishmeal production process have reduced energy consumption per output unit. However, it is essential to note that while the SEC index has improved over the years, the TEC has yet to show a consistent decrease. This indicates that the increase in the FMO has led to higher overall EC, but the energy intensity per unit of output has decreased, as is to be expected.

4.2. Assessment of the Potential for Improving Energy Efficiency in the FMP Process

The findings of this study provide evidence of the potential for improving energy efficiency in the FMP process through the implementation of WHR technologies. Installing an economizer at the KHS factory yielded energy savings and reduced SEC. The WHR technologies enabled heat recovery from the boiler flue gas, which was utilized to preheat the feed water, reducing the energy required for steam production. This optimization improved energy efficiency and reduced energy consumption per unit of fishmeal output.

A statistically significant difference in the SEC index before and after the economizer installation provides further evidence of the potential for enhancing energy efficiency. The lower SEC values observed after the installation indicate the positive impact of WHR technologies on energy consumption in the FMP process. These findings suggest that implementing similar WHR technologies in other FMP plants can reduce the SEC index and improve energy efficiency.

The results also reveal that implementing the economizer has led to annual energy savings (AES) and energy cost savings (AECS). The results showed that the installation of the economizer led to an AES of approximately 4537.57 GJ/year, primarily from the recovery of heat from RHPC. These energy savings translate into annual cost savings of USD 26,474.49. The findings highlight the potential for WHR technologies to enhance energy efficiency and contribute to cost savings for FMP plants.

4.3. Environmental Impacts and Sustainability Benefits

The analysis of CO₂ emissions in the FMP process demonstrates the environmental benefits of WHR technologies. Specifically, the installation of an economizer at the KHS factory resulted in a significant reduction in CO₂ emissions. After the economizer was installed, the emissions associated with producing one ton of fishmeal decreased by 58.37%. This reduction can be attributed to the reduced fuel consumption and consequent improved energy efficiency achieved through WHR technologies. These findings highlight the positive environmental impact of implementing WHR technologies in FMP plants.

In addition to reducing CO₂ emissions, WHR technologies also minimize air pollution and decrease the environmental footprint of FMP. By optimizing energy use and reducing the consumption of fossil fuels, these technologies help mitigate the release of pollutants into the atmosphere. This is particularly important in regions with strict environmental regulations and concerns about air quality [18,19].

The sustainability benefits of WHR technologies in FMP are significant. This study’s findings underscore these technologies’ role in achieving sustainable development goals by improving energy efficiency, reducing resource consumption, and minimizing environmental impacts. The energy and cost savings resulting from WHR contribute to the economic viability and long-term sustainability of FMP. Furthermore, the reduced reliance on fossil fuels and the associated decrease in greenhouse gas emissions align with global efforts to combat climate change and promote sustainable practices [20,21].

Moreover, WHR technologies in FMP plants contribute to the circular economy by utilizing waste heat as a valuable resource. By recovering and utilizing waste heat, these technologies minimize waste and enhance resource efficiency in the production process [22]. This aligns with the principles of a circular economy, which aims to use resources sustainably and efficiently.

The environmental and sustainability benefits of WHR technologies extend beyond individual FMP plants. Given the significant contribution of the fishmeal industry to global aquaculture [23], implementing energy-efficient and sustainable practices can have a broader positive impact on the aquaculture sector. The findings of this study can guide policymakers and industry practitioners in promoting energy-efficient and environmentally sustainable practices in the FMP industry [24,25].

4.4. Comparison of the Findings with Other Studies in the FMP Industry

This study contributes to the existing body of knowledge by providing insights into the energy efficiency and environmental benefits of WHR technologies in the FMP industry, particularly in the context of developing countries such as Vietnam. While there is limited research specifically focusing on WHR in FMP, the findings of this study can be compared and contextualized with studies conducted in other industrial sectors.

Several studies in different industries have demonstrated the potential benefits of WHR technologies in improving energy efficiency and reducing environmental impacts. For example, a study conducted in a biscuit factory in Turkey reported energy savings of 27.13 tons of CO₂ emissions per year using economizers to recover waste heat from their boiler [26]. Similarly, installing WHR technology in industrial boilers in Malaysia’s paper and pulp industries achieved savings of 2150 tons of CO₂ per year [27], comparable to the observed reduction of 866.70 tons of CO₂ emissions per year in the KHS factory.

Comparing the results of annual energy and annual cost savings with those of other studies can provide valuable insights into the effectiveness of the economizer technology. For example, a study by Rakib, et al. [28] conducted research demonstrating that a waste-heat recovery boiler utilizing hot exhaust from an onsite electricity generator, with a capacity of 2.70 t/h, was able to conserve 15,094 GJ/year of energy annually and reduce energy costs by USD 141,280. Additionally, installing an economizer resulted in a 4.9% reduction in boiler fuel consumption. Another study by Hasanuzzaman, et al. [29] reviewed industrial process heating systems in the industrial sector; the results found that in the case of boilers, 10% to 20% of energy can be saved using economizers. At the KHS plant, the installation of the economizer led to annual energy savings of approximately 4537.57 GJ/year, translating into annual cost savings of USD 26,474.49.

While the specific applications and contexts may differ, the findings of those studies align with the results of this research, demonstrating the effectiveness of WHR technologies in improving energy efficiency and reducing environmental impacts. The comparison of findings across different industries highlights the cross-sectoral relevance of WHR technologies and their potential transferability to enhance sustainability in various manufacturing processes.

4.5. Limitations of the Study and Suggestions for Future Research

This study has certain limitations that should be acknowledged. Firstly, the research focused on a single case study in Vietnam’s FMP industry. While the findings provide valuable insights into the specific context, generalizations should be made cautiously to other FMP plants and regions. Further studies encompassing multiple case studies in different countries and regions would provide a more comprehensive understanding of WHR technologies’ energy efficiency and environmental benefits in the FMP industry.

Secondly, the study relied on secondary data for specific calculations, such as CO₂ emissions and energy cost savings. The accuracy and reliability of these calculations depend on the availability and accuracy of the secondary data sources. Future research could involve primary data collection for a more robust energy and economic savings analysis.

Additionally, the study focused primarily on energy efficiency and environmental impacts, particularly CO₂ emissions reduction. Future research could explore other environmental indicators and impacts, such as water consumption, wastewater treatment, and air quality. A comprehensive assessment of the environmental footprint of the FMP process would provide a more holistic understanding of the sustainability implications.

Lastly, the study did not consider the social and socio-economic aspects of implementing WHR technologies in the FMP industry. Future research could explore the socio-economic benefits, including job creation, local community engagement, and the social acceptance of these technologies. Understanding the broader social implications would facilitate the development of strategies and policies that promote sustainable and socially responsible practices in the FMP industry.

5. Conclusions

This study assessed the energy efficiency and environmental benefits of WHR technologies in the FMP industry, with a case study in Vietnam. The objectives were to evaluate energy efficiency through WHR technologies, quantify energy savings and greenhouse gas emission reductions, and assess sustainability implications in the FMP industry. The WHR economizer at the KHS factory resulted in significant energy savings (4537.57 GJ/year) and reduced SEC by 55.5%, demonstrating the potential for WHR technologies to improve energy efficiency in the FMP industry. Installing the economizer also led to a 58.37% reduction in CO₂ emissions, contributing to global efforts to mitigate climate change and promote sustainable practices.

The implications for enhancing sustainability in the FMP industry are significant. The energy and cost savings achieved through WHR technologies contribute to the economic viability and long-term sustainability of FMP plants. Moreover, the environmental benefits of WHR technologies, such as minimizing air pollution and reducing the environmental footprint of FMP, align with the principles of a circular economy by utilizing waste heat as a valuable resource and enhancing resource efficiency. The environmental and sustainability benefits of WHR technologies extend beyond individual FMP plants and can positively impact the aquaculture sector, given the fishmeal industry’s significant contribution to global aquaculture.

In conclusion, this study emphasizes the energy efficiency and environmental benefits of WHR technologies in the FMP industry, contributing to the growing body of knowledge on sustainable practices and providing insights for policymakers and industry practitioners to promote energy-efficient and environmentally sustainable processes.
